ChemReactor CR
ChemReactor CR
-
Glass-, glass lined steel reactor : 15, 30, 60, 100, 160, 250 liter
-
Pressure : -1.0 (FV) to +0.5 bar
-
Temperature : -60 °C (-90°C) to +200 °C
-
Material : Borosilicate glass 3.3, glass lined steel, PTFE, PFA, Tantalum
Standard package
- Jacketed full glass / glass lined steel reactor
- Multipurpose glass distillation overhead
- Stainless steel frame, supporting flexible glass superstructure
- ATEX Zone 1 (0) / CE / cGMP
- CIP capable
- FDA conform, highly corrosion resistant
- Complete documentation
Standard options
- Reactor lift for easy opening (vessel cleaning)
- Sampling device
- pH monitoring and control
- Gas introduction (Nitrogen purging and active gas)
- Vacuum / exhaust piping
- Additional feeders / receivers
- Solid feeding
- Cryogenic vessel for low temperature chemistry (-90°C)
- in special glass lining or Hastelloy C22
- mixed systems with pressure reactor and vacuum distillation
- IQ / OQ / PQ

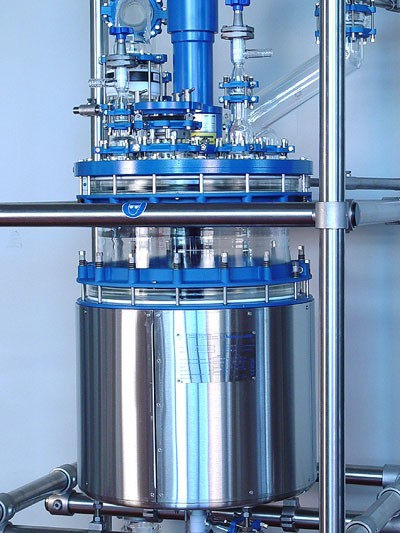

Reactor Vessel
- Jacketed glass lined steel vessel with glass section
- 15, 30, 60, 100, 160, 250 liter
- Glass lined steel impeller stirrer
- Glass lined steel baffle
- Flush mounted drain valve

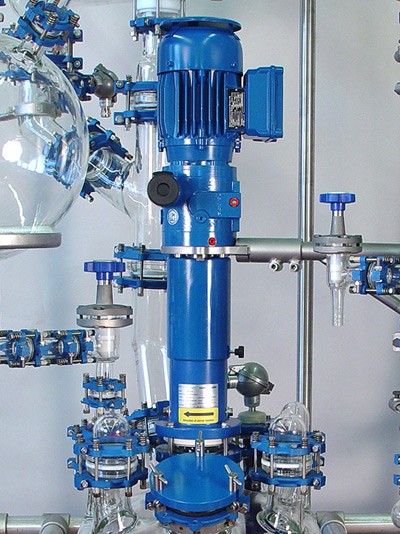

ATEX Stirrer drive
- ATEX motor and adjustable transmission
- ATEX dry running mechanical seal
- Glass lined impeller stirrer

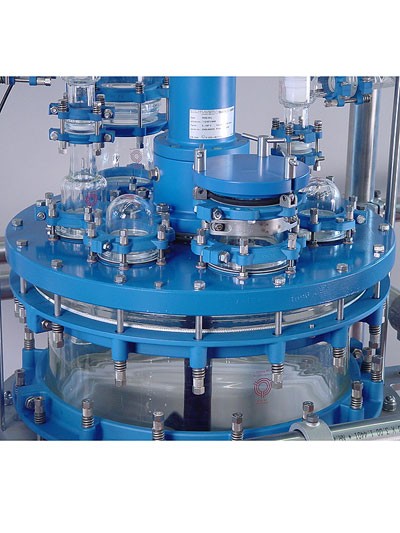

Glass dome / Glass lined cover plate
- Glass cover dome (15, 30 liter)
- Glass lined steel cover (60, 100, 160, 250 liter)
- Fast-action closure for addition of solids
- 8 connection nozzles

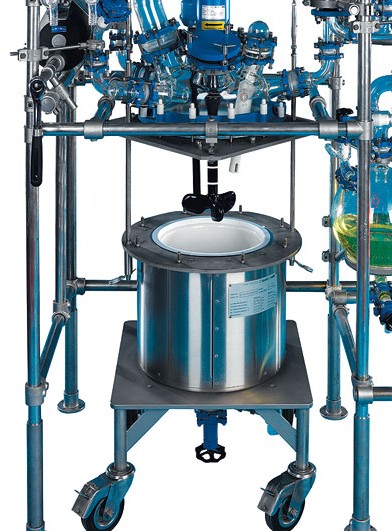

Lifting / lowering device (optional)
- Easy opening/closing of the reactor vessel
- Easy access for cleaning
